Miller HLLR2-Z7/30FT TechLine™ 30 ft Temporary Horizontal Lifeline System – 2 Person
The Miller HLLR2-Z7/30FT TechLine™ Temporary Horizontal Lifeline System by Miller by PIP is a complete 30-foot temporary horizontal lifeline solution engineered to provide continuous fall protection for up to two workers. Designed for applications where overhead anchorage is unavailable, the system creates a secure horizontal work zone that allows workers to move safely while remaining connected.
The 30-foot configuration is ideal for smaller work areas, maintenance platforms, equipment installations, structural bays, and confined construction zones where a shorter lifeline provides excellent worker mobility while minimizing rope deflection. Compared to longer horizontal lifeline systems, the 30-foot span typically requires less fall clearance and is often easier to install and tension.
At the heart of the system is an 11/16-inch (17.5 mm) low-stretch static kernmantle rope with a minimum tensile strength of 12,000 pounds, delivering outstanding durability, abrasion resistance, and reduced elongation. An integrated in-line energy absorber limits fall arrest forces to approximately 2,500 pounds, while the zinc-plated steel tensioner allows quick, accurate adjustment for proper system setup.

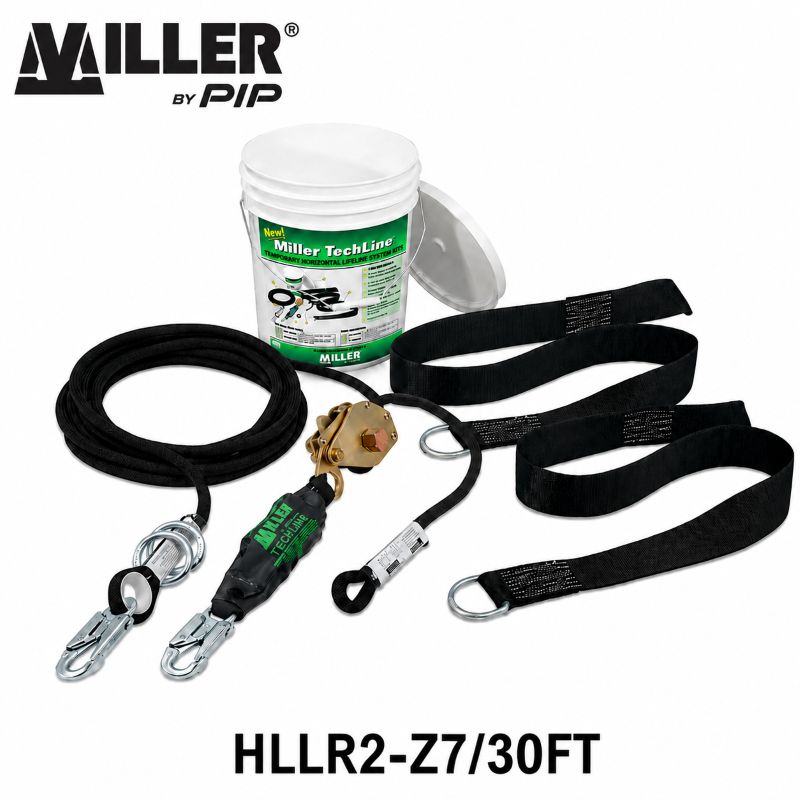

The complete kit includes two heavy-duty polyester cross-arm anchorage straps, forged alloy steel O-rings, self-locking snap hooks, and a rugged storage bucket that keeps all components organized and protected between jobs. Lightweight, reusable, and easy to transport, the HLLR2-Z7/30FT is an excellent choice for contractors, industrial maintenance crews, utilities, and manufacturing facilities requiring dependable temporary horizontal fall protection.
Designed to meet applicable OSHA, ANSI, and CSA fall protection requirements, the Miller TechLine system delivers reliable performance for demanding industrial and commercial applications.
Price:
$990.00
Free Shipping
Key Features
- 30 ft temporary horizontal lifeline system for up to two workers
- Ideal for compact work areas and shorter horizontal spans
- Low-stretch 11/16" static kernmantle rope minimizes deflection
- 12,000 lb minimum rope tensile strength
- Integrated shock absorber limits fall arrest forces to approximately 2,500 lb
- Zinc-plated steel tensioner allows fast, accurate line adjustment
- Includes two heavy-duty polyester cross-arm anchorage straps
- Forged alloy steel O-rings and self-locking snap hooks
- Durable storage bucket protects system components during transport and storage
- Lightweight, portable, and reusable
- Meets applicable OSHA, ANSI, and CSA fall protection standards
Technical Specifications
| Specification | Details |
|---|---|
| Brand: | Miller by PIP |
| Manufacturer: | Protective Industrial Products (PIP) |
| Model Number: | HLLR2-Z7/30FT |
| Product Type: | Temporary Horizontal Lifeline System |
| Maximum Span: | 30 ft (9.1 m) |
| Worker Capacity: | 2 Workers |
| Maximum User Weight: | 310 lb per worker (including clothing and tools, per manufacturer guidelines) |
| Rope Diameter: | 11/16 in. (17.5 mm) |
| Rope Type: | Static Kernmantle Rope |
| Rope Material: | Polyester sheath with nylon core |
| Minimum Rope Tensile Strength: | 12,000 lb |
| Shock Absorber: | Integrated in-line energy absorber |
| Tensioning Device: | Zinc-plated steel line tensioner |
| Anchorage Straps: | Two 3-inch polyester cross-arm straps |
| Hardware: | Forged alloy steel O-rings and self-locking snap hooks |
| Storage: | Heavy-duty storage bucket with lid |
| Compliance: | OSHA, ANSI & CSA |
Ideal Applications
The HLLR2-Z7/30FT is well suited for:
- Commercial construction
- Structural steel erection
- Industrial maintenance
- Manufacturing facilities
- Mechanical contractors
- Utility work
- Equipment installation
- Plant maintenance
- Elevated maintenance platforms
- Areas where a shorter horizontal span is sufficient
Why Choose the 30 ft TechLine System?
The 30 ft TechLine system is the ideal choice when work is performed in relatively compact areas where a longer horizontal lifeline is unnecessary. The shorter span helps reduce rope deflection, may decrease required fall clearance, and typically allows for faster installation while still providing continuous tie-off for two workers.
Typical applications include:
- Maintenance platforms
- Structural steel bays
- Equipment installations
- Small bridge sections
- Mechanical rooms
- Industrial facilities
- Manufacturing plants
For larger work areas requiring additional worker mobility, consider the Miller HLLR2-Z7/60FT TechLine™ Temporary Horizontal Lifeline System, which provides double the working span while maintaining the same premium construction and safety features.
Frequently Asked Questions
How many workers can use the HLLR2-Z7/30FT?
The system is designed for up to two authorized workers, with a maximum user capacity of 310 pounds per worker, including clothing and tools, when installed and used according to the manufacturer's instructions.
Why should I choose the 30 ft model instead of the 60 ft model?
The 30 ft model is better suited for smaller work areas where a shorter horizontal span provides adequate mobility. It typically experiences less rope deflection than longer systems and can be easier to install and tension.
Can the TechLine system be reused?
Yes. The system is designed for repeated use when properly inspected before each use and maintained according to Miller by PIP recommendations. Any system that has been subjected to a fall arrest event must be removed from service until inspected and approved in accordance with the manufacturer's instructions.
What is included with the system?
The complete kit includes:
- 30 ft static kernmantle lifeline
- Integrated shock absorber
- Steel tensioning device
- Two cross-arm anchorage straps
- Forged alloy steel O-rings
- Self-locking snap hooks
- Heavy-duty storage bucket
Does this system meet OSHA requirements?
Yes. When installed and used properly, the TechLine system is designed to comply with applicable OSHA, ANSI, and CSA fall protection standards. Always follow the manufacturer's installation instructions and your company's fall protection program.
Is a longer version available?
Yes. The Miller HLLR2-Z7/60FT offers the same premium design and components with a 60-foot working span, making it ideal for larger structures, bridge work, and extended work areas.
Available TechLine™ System Lengths
| Model | Maximum Span | Recommended Applications |
|---|---|---|
| HLLR2-Z7/30FT | 30 ft | Maintenance platforms, structural bays, compact work areas |
| HLLR2-Z7/60FT | 60 ft | Bridge work, structural steel, industrial facilities, larger work zones |
