Miller HLLR2-Z7/60FT TechLine™ 60 ft Temporary Horizontal Lifeline System – 2 Person

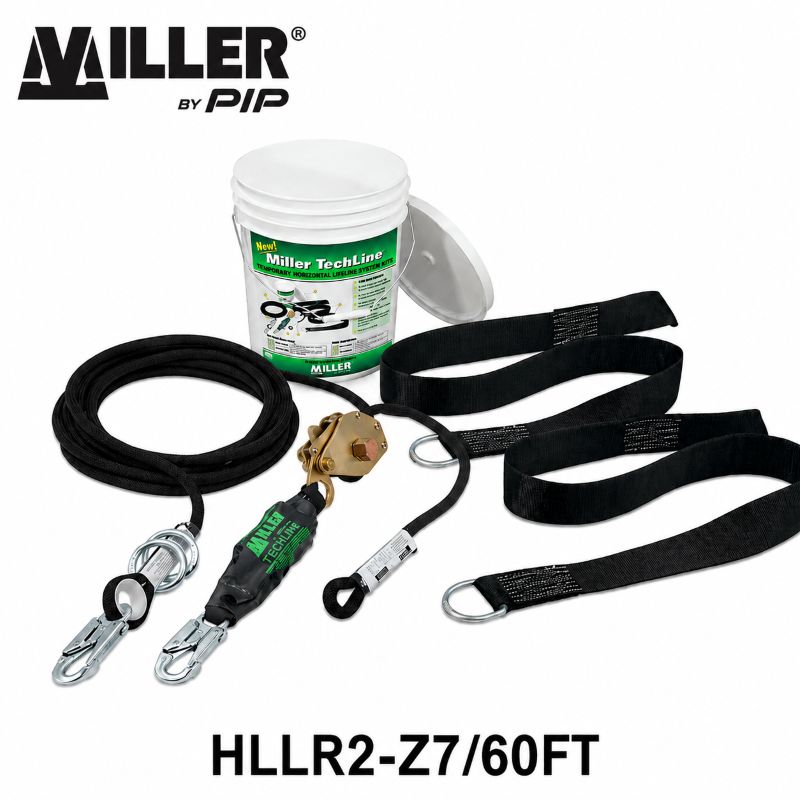

The Miller HLLR2-Z7/60FT TechLine™ Temporary Horizontal Lifeline System by Miller by PIP is a complete 60-foot temporary horizontal lifeline solution engineered to provide continuous fall protection for up to two workers. Designed for applications where overhead anchorage is unavailable, the system creates a secure horizontal work zone that allows workers to travel safely across larger work areas while remaining continuously connected. The system includes the lifeline, energy absorber, tensioning device, cross-arm anchorage straps, connecting hardware, and a durable storage bucket for easy transport and deployment.
The 60-foot configuration is specifically designed for bridge construction, structural steel erection, industrial maintenance, warehouse construction, manufacturing facilities, and other large work areas where increased horizontal mobility improves productivity and reduces the need to frequently relocate anchor points. The longer span allows workers to cover significantly more workspace while maintaining continuous tie-off.
Built around an 11/16-inch (17.5 mm) low-stretch static kernmantle rope, the system delivers a 12,000-pound minimum tensile strength while providing excellent abrasion resistance and reduced elongation to help minimize lifeline deflection. An integrated in-line energy absorber limits fall arrest forces to approximately 2,500 pounds, while the zinc-plated steel tensioner allows quick and accurate adjustment for proper system installation. Heavy-duty polyester cross-arm anchorage straps, forged alloy steel O-rings, and self-locking snap hooks complete this rugged temporary horizontal lifeline system.
Designed for demanding commercial and industrial environments, the HLLR2-Z7/60FT provides a portable, reusable horizontal lifeline solution that meets applicable OSHA, ANSI, and CSA fall protection requirements while offering the durability and reliability professionals expect from Miller by PIP.
Price:
$1,350.00
Free Shipping
Key Features
- 60 ft temporary horizontal lifeline system for up to two workers
- Extended span provides greater horizontal work coverage
- Ideal for structural steel, bridge construction, and large industrial work areas
- Low-stretch 11/16" static kernmantle rope minimizes deflection
- 12,000 lb minimum rope tensile strength
- Integrated shock absorber limits fall arrest forces to approximately 2,500 lb
- Zinc-plated steel tensioner allows fast, accurate line adjustment
- Includes two heavy-duty polyester cross-arm anchorage straps
- Forged alloy steel O-rings and self-locking snap hooks
- Heavy-duty storage bucket protects and organizes all system components
- Lightweight, portable, and reusable
- Meets applicable OSHA, ANSI, and CSA fall protection standards
Technical Specifications
| Specification | Details |
|---|---|
| Brand: | Miller by PIP |
| Manufacturer: | Protective Industrial Products (PIP) |
| Model Number: | HLLR2-Z7/60FT |
| Product Type: | Temporary Horizontal Lifeline System |
| Maximum Span: | 60 ft (18.3 m) |
| Worker Capacity: | 2 Workers |
| Maximum User Weight: | 310 lb per worker (including clothing and tools, per manufacturer guidelines) |
| Rope Diameter: | 11/16 in. (17.5 mm) |
| Rope Type: | Static Kernmantle Rope |
| Rope Material: | Polyester sheath with nylon core |
| Minimum Rope Tensile Strength: | 12,000 lb |
| Shock Absorber: | Integrated in-line energy absorber |
| Tensioning Device: | Zinc-plated steel line tensioner |
| Anchorage Straps: | Two 3-inch heavy-duty polyester cross-arm straps |
| Hardware: | Forged alloy steel O-rings and self-locking snap hooks |
| Storage: | Heavy-duty storage bucket with lid |
| Compliance: | OSHA, ANSI & CSA |
Ideal Applications
The HLLR2-Z7/60FT is well suited for:
- Bridge construction
- Structural steel erection
- Commercial construction
- Industrial maintenance
- Manufacturing facilities
- Warehouse construction
- Utility projects
- Power generation facilities
- Large elevated work platforms
- Long-span maintenance applications
- Plant shutdowns and turnarounds
Why Choose the 60 ft TechLine System?
The 60 ft TechLine system is designed for projects requiring greater horizontal worker mobility across larger structures. By covering twice the working distance of the 30 ft model, the system helps reduce the need to frequently reposition anchorage points, improving productivity while maintaining continuous fall protection.
The longer span is particularly beneficial for:
- Bridge decking
- Long structural steel runs
- Industrial pipe racks
- Manufacturing facilities
- Warehouse construction
- Large maintenance platforms
- Commercial building projects
For smaller work areas where reduced span and easier installation are preferred, consider the Miller HLLR2-Z7/30FT TechLine™ Temporary Horizontal Lifeline System, which offers the same premium components and performance in a more compact configuration.
Frequently Asked Questions
How many workers can use the HLLR2-Z7/60FT?
The system is designed for up to two authorized workers, with a maximum user capacity of 310 pounds per worker, including clothing and tools, when installed and used according to the manufacturer's instructions.
Why should I choose the 60 ft model instead of the 30 ft model?
The 60 ft model is ideal for larger work areas where additional horizontal travel is needed. It allows workers to remain tied off while covering greater distances, making it well suited for bridge work, structural steel, industrial facilities, and large commercial construction projects.
Does the longer span require additional fall clearance?
Horizontal lifeline systems experience greater deflection as span length increases. The TechLine system uses a low-stretch kernmantle rope and integrated energy absorber to help reduce deflection, but required fall clearance should always be determined using the manufacturer's instructions and clearance charts before use.
What is included with the system?
The complete kit includes:
- 60 ft static kernmantle lifeline
- Integrated shock absorber
- Steel tensioning device
- Two cross-arm anchorage straps
- Forged alloy steel O-rings
- Self-locking snap hooks
- Heavy-duty storage bucket
Does this system meet OSHA requirements?
Yes. When installed and used according to the manufacturer's instructions, the system is designed to comply with applicable OSHA, ANSI, and CSA fall protection requirements. Always follow your company's fall protection program and all applicable regulations.
Is a shorter version available?
Yes. The Miller HLLR2-Z7/30FT provides the same high-quality components and safety features with a 30-foot working span, making it an excellent choice for maintenance platforms, equipment installations, and more compact work areas.
Available TechLine™ System Lengths
| Model | Maximum Span | Recommended Applications |
|---|---|---|
| HLLR2-Z7/30FT | 30 ft | Maintenance platforms, structural bays, compact work areas |
| HLLR2-Z7/60FT | 60 ft | Bridge work, structural steel, industrial facilities, larger work zones |
