Speakman SE-362 Thermostatic Mixing Valve

View Larger Image

Regular Price: $1,336.00

Just Reduced: $898.00

SKU: SE-362
Weight: 20.00 lbs

Free Shipping!

Quantity:

Now In: Product Options

Description
Ratings
Customers Also Bought

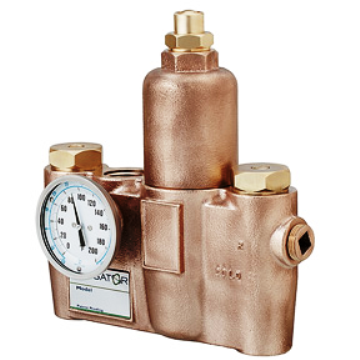

Speakman's SE-362 is a 36 gpm Thermostatic Mixing Valve for use on one emergency shower or multiple eyewash applications. This mixing valve is set at the factory to deliver 85ºF outlet flow. The SE-362 mixing valve is made of a thermostat housed in a brass casing. The thermostatic cartridge responds to changes in the hot and cold water supplies. If the element fails the valve will provide cold water flow. With the new ANSI Z-358.1 2009 standard, it is now mandatory that the flushing fluid be between 60 and 100 degrees fahrenheit. A Thermostatic mixing valve should be vandal resistant with the use of lockout/tagout.

3/4" NPT pipe inlet & 1" NPT outlet size
125 PSI maximum inlet pressure
65º to 95º F temperature range
120º-180ºF inlet temperature hot
33º-80º inlet temperature cold
Minimum temperature differential (from valve set point): 20ºF
Automatic spring check stops
