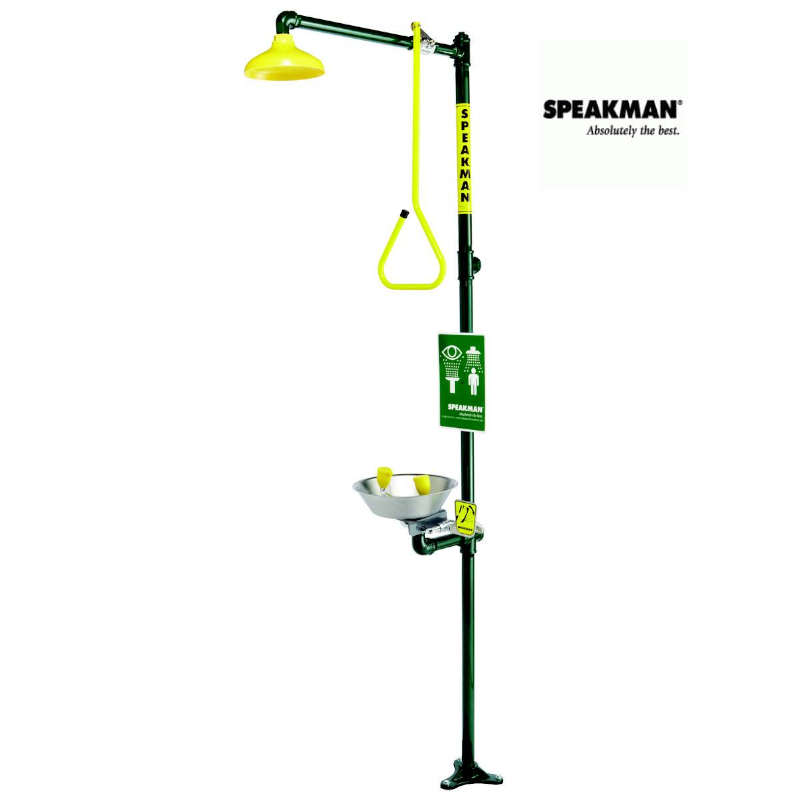

The Speakman SE-690 Combination Shower is a floor mounted emergency deluge shower and comes equipped with the SE-490 non-aerated Eye/Face Wash.  Combination shower is supplied with a 1" NPTF stay-open full flow ball valve which is activated by a triangular pull handle.  Eye/Face Wash has a 1/2" NPTM stay-open full flow valve activated by a push handle.  To activate the emergency shower by pulling the triangle handle.  To shut off the emergency shower, the valve needs to be manually closed and activation of the eyewash is done by pushing the handle back 90 degrees.  Testing of the combination eyewash and emergency shower should be done weekly by flushing the line to ensure proper operation.  A tag is supplied which should be initialed at each inspection.

• Shower Head: Cycolac Yellow Plastic 8" diameter • Eye/Face Wash: SE-490 included • Valve: 1" Female Brass, Chrome-Plated, Full Flow Stay-Open Valve • Activator: Aluminum Yellow Powder Coated Triangular Pull Rod • Flow Control: Internal 20 gpm Regulator • Stanchion: 1-1/4" IPS Steel Piping with Brass Fittings • Inlet & Waste: 1-14" NPT Female • Floor Flange: Brass Casting with Three (3) 17/32" Diameter Mounting Holes on 9" Diameter Bolt Circle Spaced 120" Apart • Finish: Safety Green Powder Coated Paint • Emergency Sign: 7-7/8" x 12" Plastic Wall Sign • ANSI Z358.1 Compliant Review Installation, Operation & Maintenance Information at http://www.speakmancompany.com/files/2445
