Eflare UB290 LED Warning Beacon – Flashing / Steady-On

Eflare UB290 LED Warning Beacon

The Eflare UB290 LED Warning Beacon is a compact, intrinsically safe safety light designed for emergency response, transportation, industrial operations, hazard marking and other applications requiring portable 360-degree warning illumination. Its selectable flashing and steady-on modes allow the beacon to be adapted to different operational requirements.

The high-visibility UB290 combines a clear Fresnel lens, fluorescent body, reflective strip and high-output LEDs to improve conspicuity during daytime, nighttime and low-visibility conditions. It provides a reusable alternative to pyrotechnic flares without producing flame, heat, toxic fumes or residue.

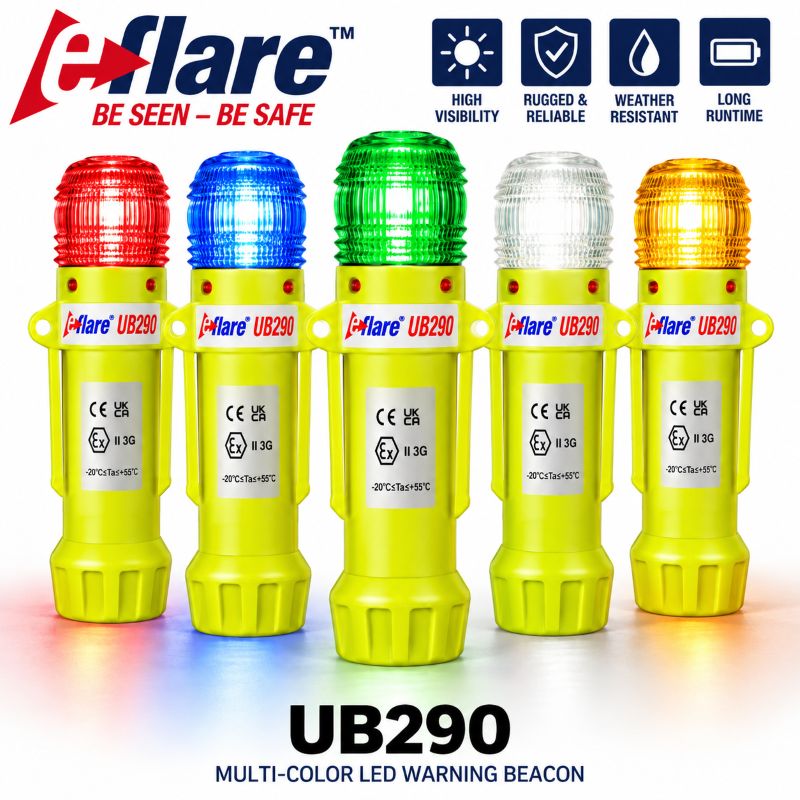

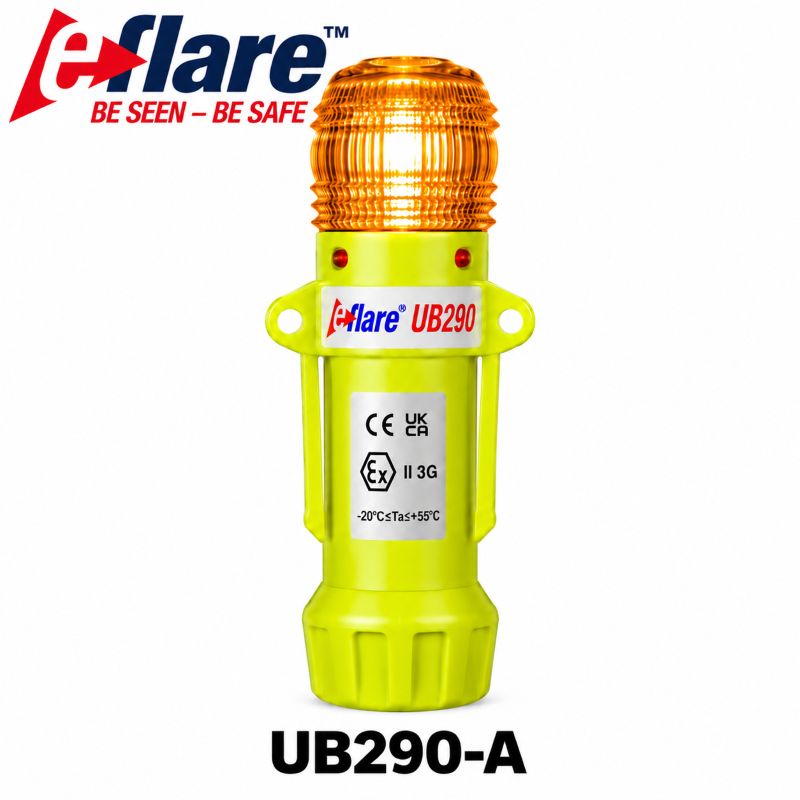

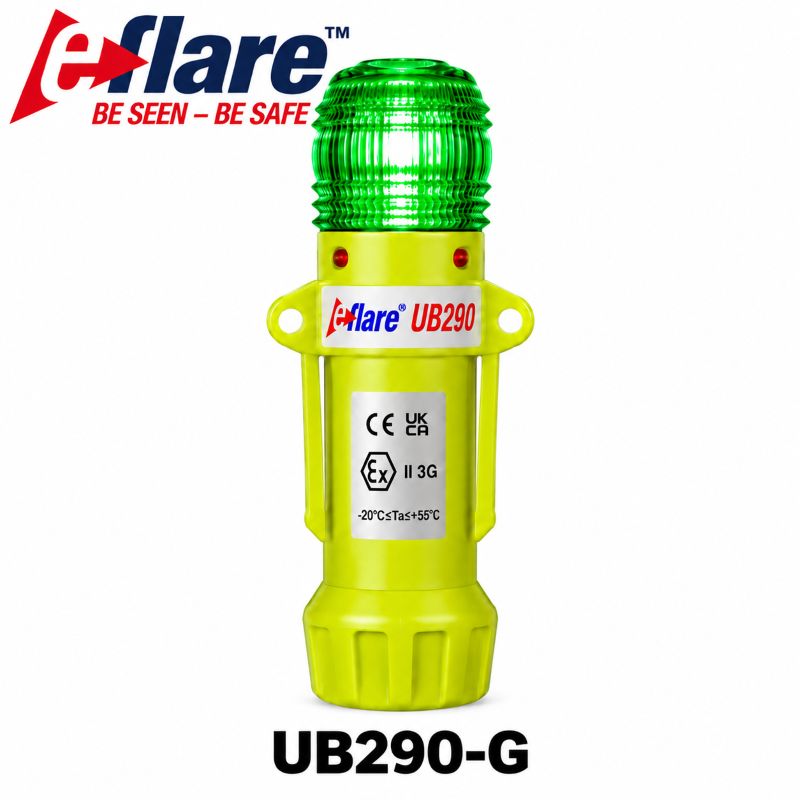

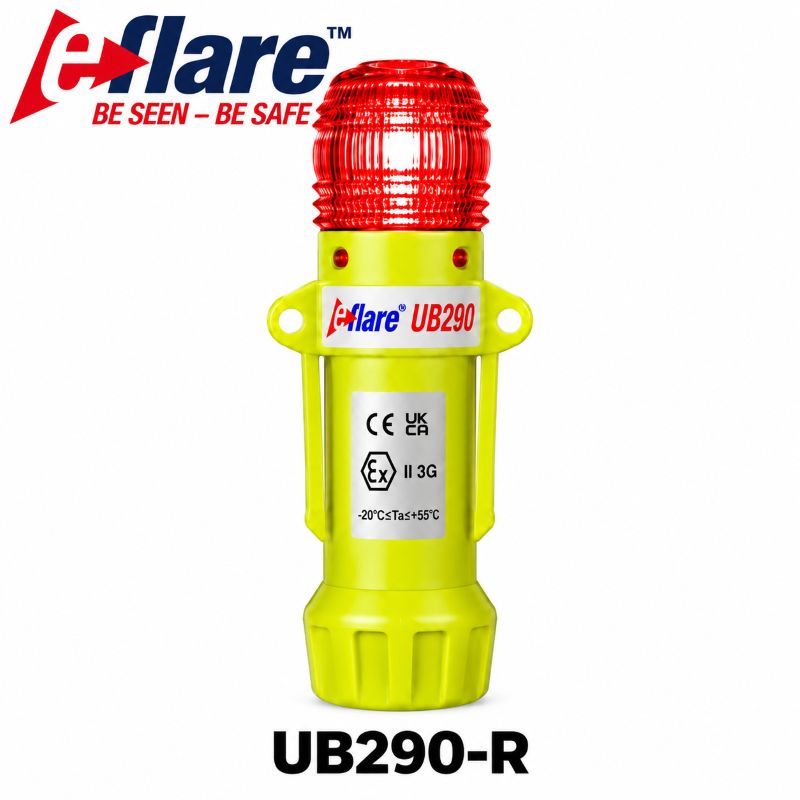

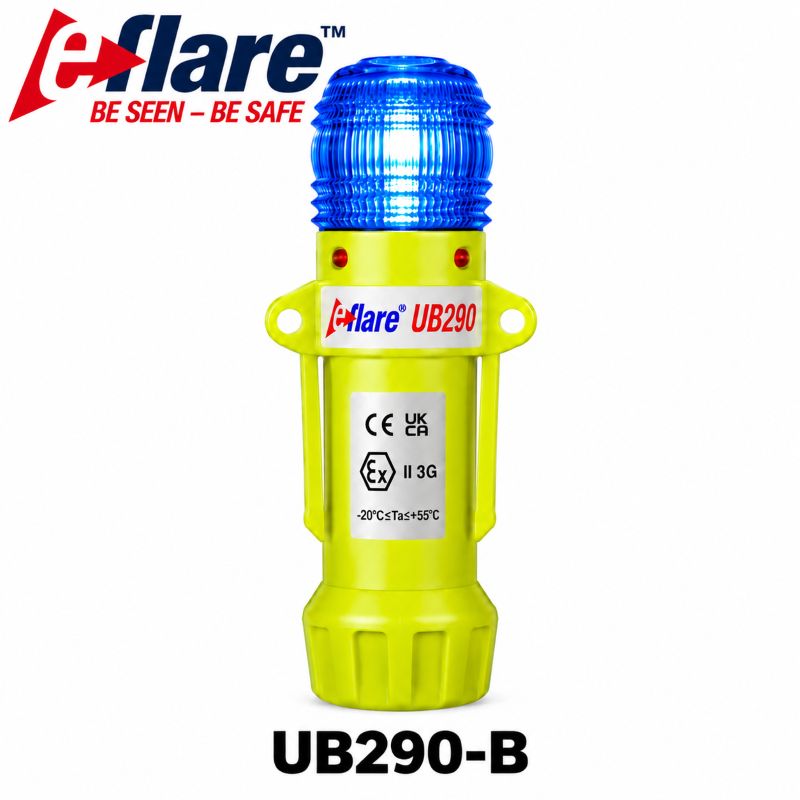

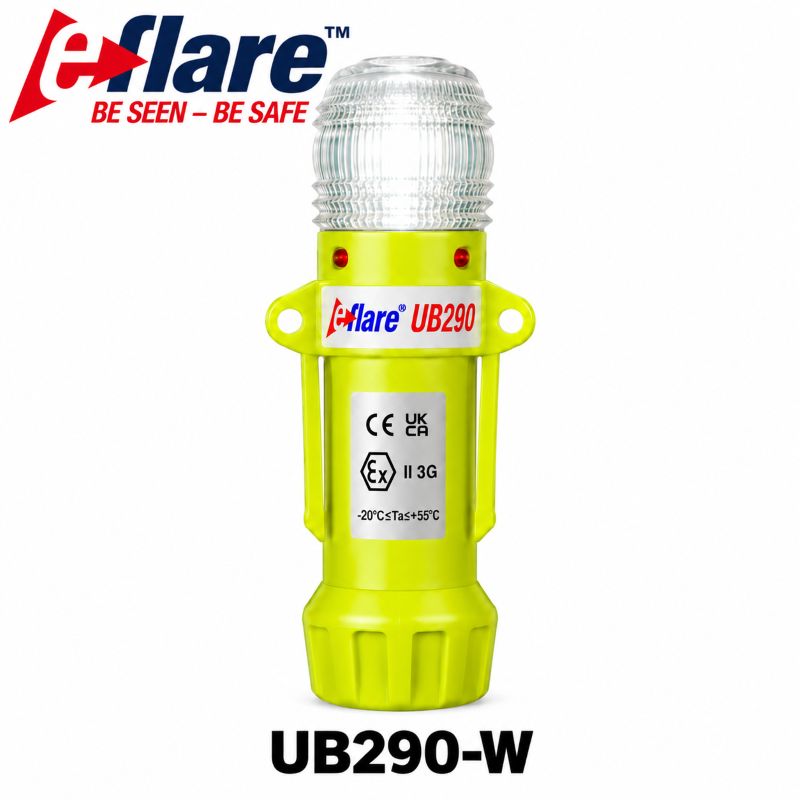

Available UB290 Colors

Select the required beacon color from the product options before adding the UB290 to your cart.

Key Features & Benefits

• Selectable flashing or steady-on operation for different warning and identification applications
• 360-degree light distribution provides visibility from multiple directions
• Patented Fresnel lens helps maximize beacon conspicuity
• Published visibility exceeding one kilometer under suitable conditions
• Designed to avoid the night-vision disruption, point fixation and distance-judgment concerns associated with some conventional strobe lights
• Available in amber, red, blue, green and white
• Eight high-output LEDs provide efficient warning illumination
• Fluorescent body and reflective strip improve visibility when the beacon is not illuminated
• Battery-status indicator displays green, amber or red condition
• Positive-activation microswitch helps prevent accidental operation
• Shatter-resistant polycarbonate lens provides clarity and impact resistance
• Impact-resistant ABS body and cap withstand demanding field use
• Precision O-rings help seal the beacon against dust and water
• High-strength clip permits attachment to compatible cones, signs, belts and vehicle windows
• No flame, hot surface, toxic fumes or residue associated with pyrotechnic flares
• Lightweight design is easy to transport, store and deploy

Eflare UB290 Specifications

How the UB290 Operates

Rotate the UB290 lens to select flashing or steady-on operation. The positive-activation microswitch helps prevent the beacon from being switched on or off accidentally during storage, transportation and deployment.

When the beacon is activated, a battery-status indicator is visible through the top of the lens. Green indicates satisfactory battery condition, amber indicates an intermediate level that should be monitored, and red indicates that the batteries should be replaced.

Remove the batteries during extended storage. Batteries should not be replaced in an area where an explosive gas atmosphere may be present.

Where Is the Eflare UB290 Best Used?

• Fire, rescue and emergency medical operations
• Police and public-safety incident scenes
• Roadside emergencies and traffic control
• Construction zones and temporary work areas
• Transportation, trucking and fleet operations
• Rail yards, terminals and transit operations
• Warehouses and distribution centers
• Industrial plants and utility operations
• Ports, docks and marine facilities
• Aviation ground operations
• Hazardous-location applications covered by the beacon’s published approvals

Is the UB290 Right for Your Application?

Choose the UB290 when you need a lightweight, reusable LED warning beacon with both flashing and steady-on modes. Its five available colors, long-distance visibility, compact design and range of optional mounting accessories make it adaptable to emergency response, transportation and industrial safety applications.

Hazardous-Area Selection

Eflare publishes the UB290 with the hazardous-area marking Ex ic IIC T4 Gc IP66 and IECEx, ATEX and UKEX approvals. Confirm that the exact model, certification and operating conditions satisfy the requirements of your facility and jurisdiction before using the beacon in a classified or potentially explosive environment.

Do not assume that an intrinsically safe product is automatically approved for every hazardous location. Equipment selection should be reviewed by the facility safety professional, authority having jurisdiction or another qualified person.

Frequently Asked Questions

Does the UB290 replace the Eflare AT290?

Yes. The UB290 is the current replacement for the discontinued AT290 flashing and steady-on beacon series. Select the corresponding UB290 color when replacing an AT290.

What colors are available?

The UB290 is available in amber, red, blue, green and white.

Does the UB290 flash and remain continuously illuminated?

Yes. The UB290 provides both flashing and steady-on operating modes. The operating mode is selected by rotating the lens.

Are batteries included?

No. The UB290 requires four AA batteries, which are sold separately.

Does the beacon include a mounting base?

No. The standard UB290 beacon is sold without a mounting base. Compatible rubber, aviation, magnetic and rail mounting accessories are available separately.

How long does the UB290 operate on one set of batteries?

The beacon provides approximately 40 hours of operation. Actual runtime depends on battery quality, operating mode, temperature and other conditions.

Is the UB290 weather resistant?

Yes. The UB290 is rated IP66, providing protection against dust and powerful water jets when the beacon is properly assembled.

Can the UB290 be used instead of a pyrotechnic flare?

The UB290 provides reusable visual warning and identification without flame, heat, fumes or residue. The correct warning device still depends on the application, agency procedures and applicable regulations.
