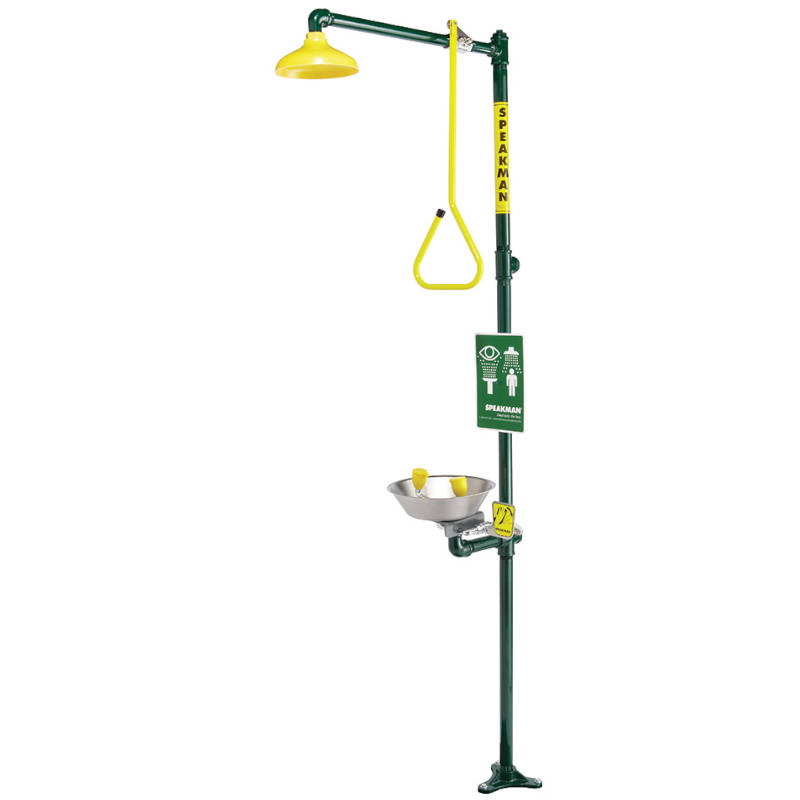

The Speakman Safe-T-Zone SE-693 Combination Shower and Eyewash is a floor mounted emergency deluge shower and an SE-582 Eyewash with dual aerated spray outlets with flip top covers.  Shower is supplied with a 1" NPTF stay-open full flow ball valve which is activated by a high visibility yellow triangular pull handle.  Eyewash has a 1/2" NPTM stay-open full flow valve which is activated by a push handle.  To shut off the emergency shower, the valve needs to be manually closed.  Activation of the eyewash is done by pushing the handle back 90 degrees.  Testing of the eyewash and emergency shower should be done weekly to flush the line and ensure proper operation.  A tag is supplied to initial at each inspection.

• Shower Head: Yellow Plastic (Cycolac) 8" diameter • Eye Wash: SE-582 included • Valve: 1" Female Brass, Chrome-Plated, Full Flow Stay-Open Valve • Activator: Aluminum Triangular Pull Rod - Powder Colored Yellow • Flow Control: Internal 20 gpm Restrictor • Stanchion: 1-1/4" IPS Galvanized Steel Piping with Brass Fittings • Inlet & Waste: 1-14" NPT Female • Floor Flange: Brass Casting with Three (3) 17/32 Diameter Mounting Holes on 9" Diameter Bolt Circle Spaced 120" Apart • Finish: DuraJade™ Poewder Coated Finish • Emergency Sign: 7-7/8" x 12" Plastic Wall Sign • ANSI Z358.1 Compliant
